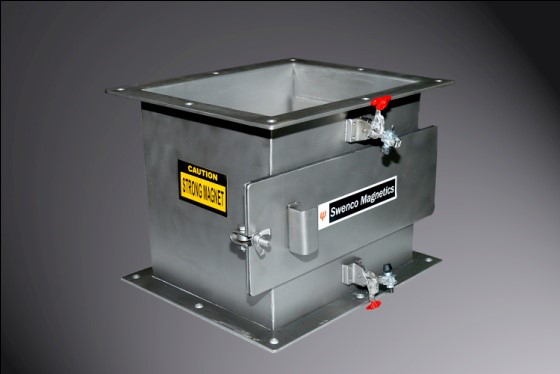

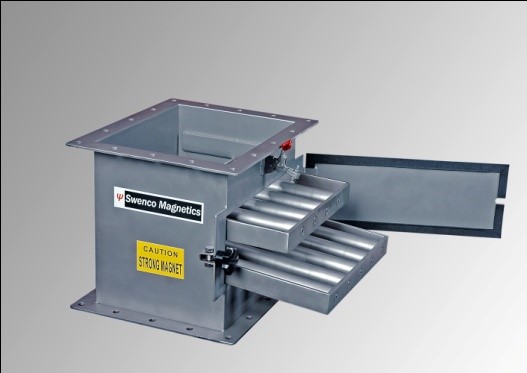

Swenco Grate in Housing is a unit used in gravity fed vertical pipelines or rectangular ducts. These units come with a single row or multiple row of magnets. The magnetic tubes are mounted on a frame that slides into the housing. The housing is provided with a door locked with toggle clamps.

The magnet spacing is available in two variants namely TGH-51mm spacing and FGH-38mm spacing designed for specific type of separation to be achieved.

These units are available in standard sizes and can be provided with adapters (optional). The entire unit is made of Stainless Steel but also custom built to suit the customer requirement. The magnet is generally made with a high-intensity Rare Earth magnetic circuit, which attract and secure unwanted iron present in the product stream.

For selection the open area of the grate should be 10% more than the area of the pipeline or duct.
